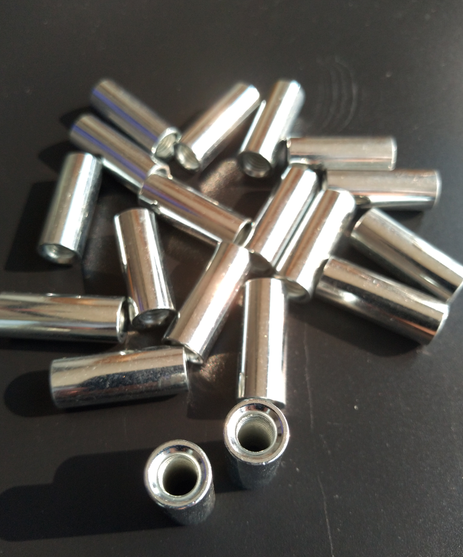

Diamond wire saw beaded wire rope connector

Summary:

The utility model discloses a diamond wire saw beaded wire rope connecting head, which has a stepped shaft structure and is substantially the same shape as a diamond wire saw bead. The connecting center shaft tube has a through hole for connecting two wire rope heads. The convex outer cylindrical surface of the central shaft is inlaid with a cutting material layer, and different cutting materials can be set according to requirements, and the two wires of the wire rope are respectively inserted into the through holes, and the compressive force is applied to the ends of the central shaft tube to connect the bead body. Wire rope. Since the outer cylindrical surface of the utility model is provided with a wear-resistant cutting material, the joint head not only has the function of connecting the steel wire rope, but also has a cutting effect on the material. Therefore, the problem that the casing joint is fast and the joint is easily broken is effectively solved, which is an important improvement to the conventional diamond wire saw connector.

Independent claim:

A diamond wire saw beaded wire rope connecting head, the outer shape of which is formed into a stepped shaft structure, characterized in that: the central shaft tube of the connecting head has a through-hole connecting wire through-hole in the axial direction, and protrudes outside the central shaft tube The cylindrical surface is inlaid with a layer of cutting material that is resistant to wear and cutting.
