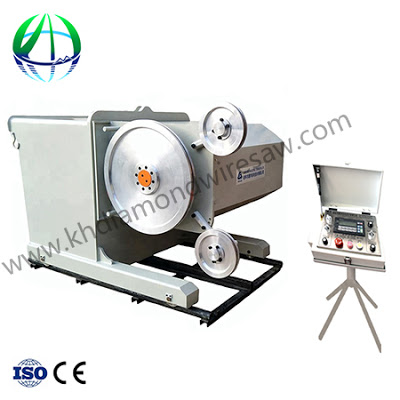

Hard Rock Cutting CNC Automatic Diamond Wire Saw Machine 55kw

Published time:2019-07-19 10:00:50

Rock cutting CNC automatic diamond wire saw machine description

Rock cutting diamond wire saw machine is an equipment using the diamond wire saw for cutting, its cutting speed can be very fast and the efficiency is high. It mainly apply to stone quarrying, concrete cutting and metal cutting. Kanghua rock cutting wire saw machine is upgraded to permanent magnet synchroous driver, text display, communication transmission and dual PLCs control combination, with the dual operating system and exclusive patent Double-surpported Rotary Reducer, which is the first in the industry.

In 2018, Kanghua diamond wire saw machine won the title of CCTV Ingenuity Brand.

Hard rock cutting CNC automatic diamond wire saw machine details

Place of Origin:Guangxi,China (Mainland)

Hard rock cutting CNC automatic diamond wire saw machine

Brand Name:KANGHUA

Model Number:LKH-55

Voltage:380V

Weight:3300kg

Color:Orange/White

Type:Stone Cutting Machine

Function:quarry stone block

Main motor power:55kw

Rated rotation speed:800rpm

Length of wire saw:20-150m

Linear speed of wire saw:0-40m/s

Feeding speed of machine:0-40m/h

Diammeter of flywheel:800mm

Maximum cutting distance:2000mm

Certification:ISO

Warranty:1 Year

Production Capacity:100%

Control:permanent magnet syncronous drive and double PLCs

After-sales Service Provided:Engineers available to service machinery overseas

Rock cutting CNC automatic diamond wire saw machine performances

1.For Kanghua rock cutting diamond wire saw machine,the motor output torque can be constancy through high performance of vector frequency converter. And the automatically tensile force controlling system can adjust the speed of input and output automatically according to the cutting force,which could enhance the using life of continuity and safety for cutting process.

2.The speed of wire saw can adjust automatically in the range of 0-40 m/s,which is convenient for cutting.

3.The 360°turning head,with electric double transmission, the machine can satisfy any angle cutting demands.

4.The adjustment of head adopts an automatic control hydraulic transmission system,which can increase the stability of the machine and using life.

5.With strong and sensitive negative feedbacks,the current monitor can adjust the output power so that improves the machine efficiency.

CNC automatic diamond wire saw machine site
